What is thermistor What are the limitations of thermistor

Non-linearity in resistance vs temperature characteristics. Unsuitable for wide temperature range. Very low excitation current to avoid self-heating.

What are the advantages and disadvantages of thermistor?

The main advantages of the thermistor are large temperature coefficient of resistance, high sensitivity, small heat capacity, fast response; but the main disadvantages are poor interchangeability and non-linearity of thermoelectric characteristics, which is to expand the measurement.

What are the disadvantages of temperature sensor?

Following are the disadvantages of temperature sensor : ➨(Disadvantages of thermocouple are): Non linearity, least stability, Low voltage, Reference is needed, least sensitivity etc. ➨(Disadvantages of RTD are ): Lower absolute resistance, expensive, current source needed, less rugged compare to thermocouples etc.

What are the disadvantages of thermocouple over thermistor?

Thermistor AdvantagesThermocouple AdvantagesSingle-ended channelThermistor DisadvantagesThermocouple DisadvantagesRequire powerRequire accurate reference temperatureSelf-heating errors from applied powerSmall response (small output signal)

Which of the following is the disadvantages of thermistor?

Disadvantages of thermistor: The thermistor is not suitable for a large temperature range. The resistance temperature characteristics are nonlinear. Narrow working temperature range compared to other sensors such as RTD and thermocouple. More fragile as they are semiconductor devices.

How is a thermistor useful?

Thermistors are used as temperature sensors. They can be found in every day appliances such as fire alarms, ovens and refrigerators. They are also used in digital thermometers and in many automotive applications to measure temperature.

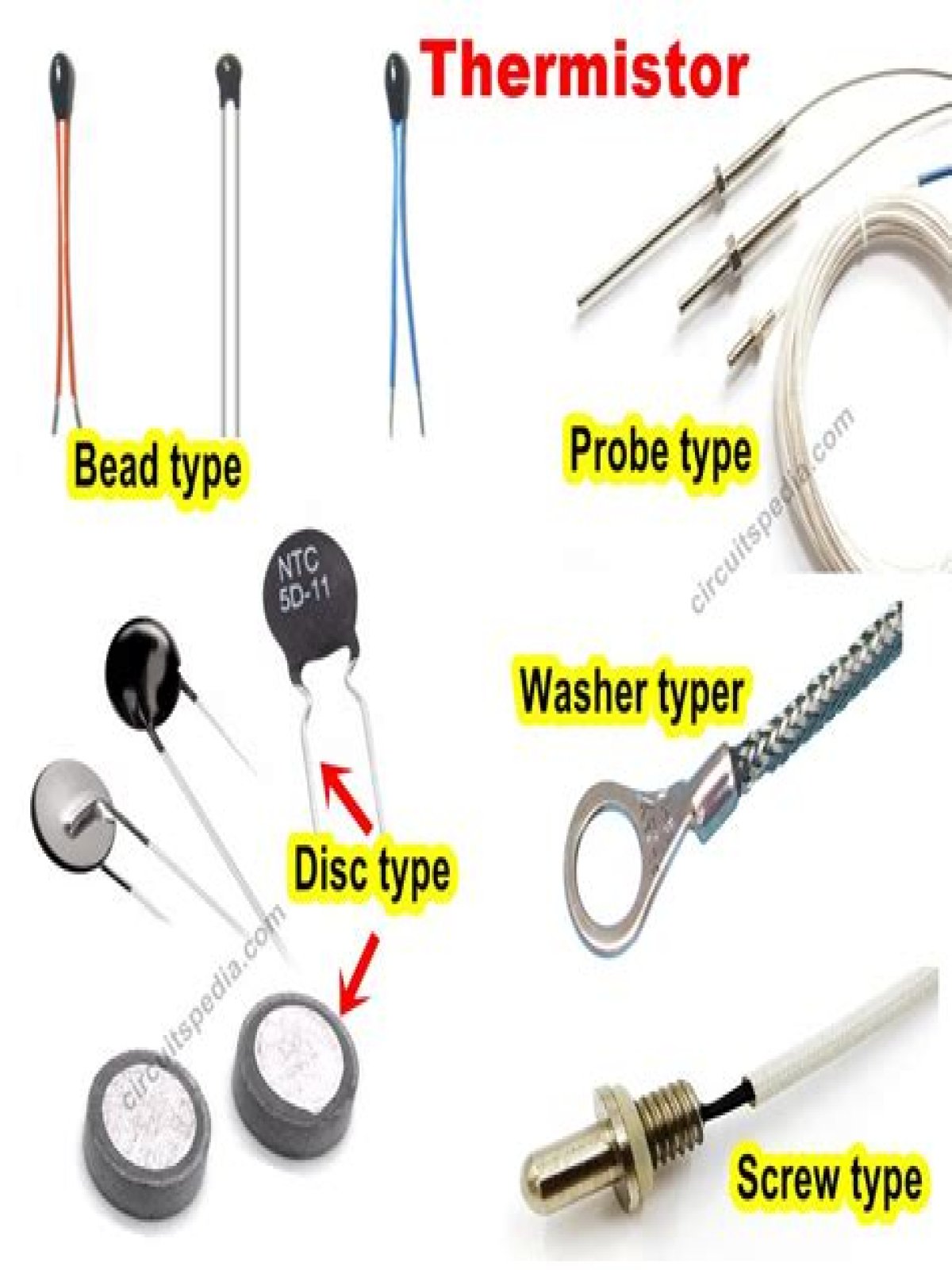

What are the types of thermistor?

There are two types of thermistors: Negative Temperature Coefficient (NTC) and Positive Temperature Coefficient (PTC). With an NTC thermistor, when the temperature increases, resistance decreases. Conversely, when temperature decreases, resistance increases.

What are the advantages of thermistor over RTD?

RTD (Resistance Temperature Detector)ThermistorRTD has low accuracy.Thermistors have good accuracy.Used for greater temperature range up to 600°C.Used for lower temperatures ranging from -55°C to +130°C.RTD allows smaller cable lengths.It allows larger cable length.

What are the advantages and disadvantages of resistance thermometer?

THE RESISTANCE THERMOMETER (RTD)AdvantageDisadvantagethe platinum resistance detector is stable and resistant to corrosion and oxidationRTDs do not allow point measurement of temperature because of the dimension of the sensing element

What are the limitations of thermocouple?

• Thermocouples are not as accurate as RTDs in a certain set temperature range.
• Thermocouples are susceptible to drift over time.
• Thermocouples, when badly insulated, are vulnerable to corrosion.
• Thermocouple signals are not perfectly linear.

Article first time published on

What are the advantages and disadvantages of a thermocouple?

SensorAdvantagesDisadvantagesThermocoupleSimple Inexpensive Large variety Large temperature range Rugged « Self-powered »Non linear Low voltage Require reference Less stableRTDMore Stable More accurate More linearExpensive Current source required Small Self heating Small base resistance

Which is better thermistor or thermocouple?

Basis For ComparisonThermocoupleThermistorAccuracyHighVery LowTemperature Range-50°C to 250°C-200°C to 1250°C

What are the advantages of a temperature sensor?

Advantages of Temperature Sensors They have a faster response time because of the lower thermal mass. The vibrating wire type is normally full-interchangeable. It means that one indicator can be used for all sensors. It also has a particular technology for verifying long-term stability, simple and fast output.

What is the limitation of dht11 sensor?

It is fairly simple to use, but requires careful timing to detect data. The only limitation on this sensor is you can only get new data from it once every 2 seconds.

What material is a thermistor made of?

Thermistors are made from semiconductor materials, typically metallic oxides, using cobalt, manganese, or nickel. The temperature–resistance relationship in a thermistor is nonlinear and negative, as shown in Equation 1.10. 1.

What is liquid filled thermometer?

It is a glass thermometer that is also called “spirit filled.” As the internal temperature of the food increases, the liquid inside the stem expands and rises to indicate the temperature on a scale.

What are PTC and NTC with examples?

For example: – A 10k NTC thermistor displays 10k ohm resistance at 25°C and has a negative relationship between temperature and resistance. – A 100k PTC thermistor displays 100k ohm resistance at 25°C and has a positive temperature-resistance relationship.

What are LDRs used for in everyday life?

LDRs (light-dependent resistors) are used to detect light levels, for example, in automatic security lights. Their resistance decreases as the light intensity increases: in the dark and at low light levels, the resistance of an LDR is high and little current can flow through it.

Why is it difficult to measure temperature with a thermistor?

Technically, all resistors are thermistors – their resistance changes slightly with temperature – but the change is usually very very small and difficult to measure. Thermistors are made so that the resistance changes drastically with temperature so that it can be 100 ohms or more of change per degree!

How does a thermistor work?

Thermistors are available in two types: those with Negative Temperature Coefficients (NTC thermistors) and those with Positive Temperature Coefficients (PTC thermistors). NTC thermistors’ resistance decreases as their temperature increases, while PTC thermistors’ resistance increases as their temperature increases.

What is the advantages and disadvantages of industrial sensor?

SensorAdvantagesDisadvantagesCapacitive Sensor•Detects Through Some Containers •Can Detect Non-Metallic Targets•Very Sensitive to Extreme Environmental ChangesUltrasonic Sensor•Senses all Materials•Resolution •Repeatability •Sensitive to Temperature Changes

What are the shortcomings of using liquid and glass thermometers?

Disadvantages. Liquid in glass thermometers tend to be fragile and hence easily broken, can only be used where the liquid column is visible, cannot be used for surface temperature measurements, cannot be read from a distance and are unsuitable for high temperature measurements.

What is the main difference between an RTD and a thermistor?

The RTD is a type of instrument used for measuring the temperature, whereas, the thermistor is the thermal resistor whose resistance changes with temperature. The RTD is made of the metals having a positive temperature coefficient whereas the thermistor is made of the semiconductor materials.

How accurate is a thermistor?

Thermistors are one of the most accurate types of temperature sensors. OMEGA thermistors have an accuracy of ±0.1°C or ±0.2°C depending on the particular temperature sensor model. However, these elements are fairly limited in their temperature range, working only over a nominal range of 0°C to 100°C .

What is the temperature range of a thermistor?

The typical operating temperature range of a thermistor is −55 °C to +150 °C, though some glass-body thermistors have a maximal operating temperature of +300 °C.

What is the limitation of gas thermometer?

Disadvantages of gas thermometers: (i) It is not a direct reading thermometer. (ii) It is not portable. (iii) It cannot measure accurately the rapidly changing temperatures.

What is the limitation of resistance thermometer?

Limitations: RTDs in industrial applications are rarely used above 660 °C. At temperatures above 660 °C it becomes increasingly difficult to prevent the platinum from becoming contaminated by impurities from the metal sheath of the thermometer.

What is the main disadvantage of using a thermocouple that require some signal processing )?

Disadvantages with thermocouples The materials of which thermocouple wires are made are not inert and the thermoelectric voltage developed along the length of the thermocouple wire may be influenced by corrosion etc. The relationship between the process temperature and the thermocouple signal (millivolt) is not linear.

What is difference between thermometer and thermocouple?

is that thermocouple is (physics) a transducer consisting of two different metals welded together at each end; a voltage is produced that is proportional to the difference in temperature between the two junctions (one of which is normally held at a known temperature) while thermometer is an apparatus used to measure …

Which one is suitable advantage of thermocouple?

Advantages of Thermocouple: They are capable of being used to directly measure temperatures up to 2600ºC; and. The junction of the thermocouple can be grounded and brought into direct contact with the measured material.

What is the difference between RTD and NTC?

Whereas in RTDs there is a positive correlation between resistance and temperature (as temperature increases, resistance increases as well), in negative temperature coefficient (NTC) thermistors, the inverse relationship holds (resistance decreases as temperature increases). …
